OEM ZF 6HP19Z 6HP19 6hp21 Valve Body Sleeve Connector Seal kit 6pcs BMW Transmission

$140.00

Category:

Description

Mechatronic seal overhaul, 99% of all mechatronic issues are caused due to the cracked ZF figure 8 bridge seal adapter. If you are replacing bridge seal adapter you will also need the remaning 5 seals to be replaced. This kit has all 6 seals you need to fix your transmission fault. More info about transmission fault you can find on http://transmissionfault.com

Shipping from CHICAGO, IL My feedback is 100% positive. ALL OEM BMW ZF products.
I am a local to Chicago and can do the repair for you, if you are in chicagoland call me text me, or you can use / rent my lift for the weekend to do the repair yourself.
You can stop by and pick it up if you want (please pay cash upon pick up if you stop by, if you buy online we will ship it right away, can’t undo that). My cell is 847 459 one five35
This kit is necessary if you have a transmission fault (message P R N D) comes up on BMW, Jaguar, Range Rover, basically if you Mechatronic Bridge Seal adapter gets cracked.
This is OEM, every part is OEM ZF. 6hp19 6hp19z 6hp21  transmissions.

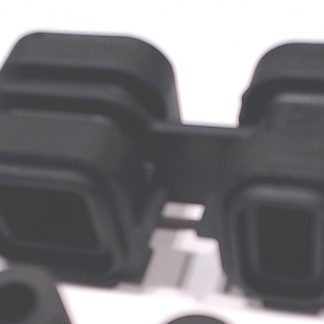

1 mechatronic bridge seal adapter (figure 8 part). (between the mechatronic and the tranmission)
1 mechatronic / mekhatronic seal adapter (between the connector and the transmission)
4 rare ZF tubes that are required to be replaced if you are replacing the bridge seal adapter. (2 of the same size) + 1 and +1

No refunds and no returns.

2x BMW auto trans valve body sealing sleeve ZF 24107536339 ZFS-050131927901
1 BMW Mechatronics Sealing Sleeve ZF 24347588725 ZFS 050121627201
1 BMW Auto transmission adapter plug zf 24107536340 ZFS 050131928001
1 BMW auto trans valve body sealing sleeve ZF 24107536341 zfs 05131928101
1 BMW Auto Transmission Valve body Sealing sleeve ZF 24347588724 zfs 050121578301

The only thing that are missing from the complete overhaul are a) filter (which most of you will either reuse or buy a new one) and about 9 liters of automatic transmission fluid (which you will either reuse or buy new).

WE SHIP INTERNATIONALLY AS WELL through global shipping program.



some parts also have markings like:

6HP19 1071 010 …

6HP19 1071 010 …

6HP19X 1071 020 …

6HP19A 1071 040 …

6HP21 1071 030 …

6HP21x 1070 050 …

This late Mechatronic seal adapter will fit all 6HP19 and 6HP21 transmissions with a locating notch in the transmission intermediate plate. Check the picture above for additional information.

qty 2 : 24107536339 Valve Body to Trans Housing Seal (31.2 mm)
qty 1 : 24107536340 Valve Body to Trans Housing Seal (35.5 mm)
qty 1 : 24107536341 Valve Body to Trans Housing Seal (48.9 mm)

6HP19 Transmission kit: ZF 6hp19Z 6hp19 6hp21

Fits the following models.

Hyundai Genesis Coupe

BMW X3

2009–2012 Hyundai Genesis Sedan 4.6 liter V8

BMW 520i (E60)

BMW 530i, (E60), pre-LCI

BMW 630i, (E63), pre-LCI

BMW 325i, 330i, 335i (E90), pre-LCI

BMW 116i, 118i, 120i (E87), pre-LCI

6HP19A

Applications[edit]

Audi (B6) S4 (Typ 8E/8H)

Audi (B7) S4 (Typ 8E/8H)

VW Phaeton (Typ 3D)

VW Touareg (Typ 7L)

Audi Q7 (Typ 4L)

Audi A6 (Typ C6/4F) 3.0 TDI / 3.2 FSI

(6HP19 1071 010, 6HP19 1071 010, 6HP19X 1071 020, 6HP19A 1071 040, 6HP21 1071 030, 6HP21x 1070 050 ) All are the same kit as above ZF 6hp19Z 6hp19 6hp21.

This kit solves the following problems:

Transmission Fault- Drive Moderately

Transmission Fault, only P, N, R, D3 and D5 are available, drive moderately

Transmission issue, transmission problem, gear not engaging, instead of R going into D, instead of D goes into R. Gear goes back to P.
